# Initialize the matrix as empty
affinity = np.empty((self.n_nodes, self.n_nodes))
# Center each region
X_centered = [
np.array(
X[kmeans.labels_ == i] - kmeans.cluster_centers_[i],
dtype=np.float32,
order="F",
)
for i in range(self.n_nodes)
]
# Cardinal calculation
counts = np.array([X_centered[i].shape[0] for i in range(self.n_nodes)])
counts = counts[None, :] + counts[:, None]
# Calculate the affinity
for i in range(self.n_nodes):
segments = np.asfortranarray(
kmeans.cluster_centers_ - kmeans.cluster_centers_[i]
)
dists = np.einsum("ij,ij->i", segments, segments)
dists[i] = 1
projs = sgemm(1.0, X_centered[i], segments, trans_b=True)
np.clip(projs / dists, 0, None, out=projs)
projs = np.power(projs, self.p)
affinity[i] = projs.sum(axis=0)
affinity = np.power((affinity + affinity.T) / counts, 1 / self.p)
affinity -= 0.5 * affinity.max()
# Scale and exponentiate
q10, q90 = np.quantile(affinity, [0.1, 0.9])
gamma = np.log(self.M) / (q90 - q10)
affinity = np.exp(gamma * affinity)1 Introduction
Clustering is a fundamental technique for exploratory data analysis, organizing a set of objects into distinct homogeneous groups known as clusters. It is extensively utilized across various fields, such as biology for gene expression analysis (Eisen et al. 1998), social sciences for community detection in social networks (Latouche, Birmelé, and Ambroise 2011), and psychology for identifying behavioral patterns. Clustering is often employed alongside supervised learning as a pre-processing step, helping to structure and simplify data, thus enhancing the performance and interpretability of subsequent predictive models (Verhaak et al. 2010). Additionally, clustering can be integrated into supervised learning algorithms, such as mixture of experts (Jacobs et al. 1991), as part of a multi-objective strategy.
There are various approaches to clustering, and the quality of the results is largely determined by how the similarity between objects is defined, either through a similarity measure or a distance metric. Clustering techniques originate from diverse fields of research, such as genetics, psychometry, statistics, and computer science. Some methods are entirely heuristic, while others aim to optimize specific criteria and can be related to statistical models.
Density-based methods identify regions within the data with a high concentration of points, corresponding to the modes of the joint density. A notable non-parametric example of this approach is DBSCAN (Ester et al. 1996). In contrast, model-based clustering, such as Gaussian mixture models, represents a parametric approach to density-based methods. Model-based clustering assumes that the data is generated from a mixture of underlying probability distributions, typically Gaussian distributions. Each cluster is viewed as a component of this mixture model, and the Expectation-Maximization (EM) algorithm is often used to estimate the parameters. This approach provides a probabilistic framework for clustering, allowing for the incorporation of prior knowledge and the ability to handle more complex cluster shapes and distributions (McLachlan and Peel 2000).
Geometric approaches, such as k-means (MacQueen et al. 1967), are distance-based methods that aim to partition data by optimizing a criterion reflecting group homogeneity. The k-means++ algorithm (Arthur and Vassilvitskii 2006) enhances this approach by providing faster and more reliable results. However, a key limitation of these methods is the assumption of linear boundaries between clusters, implying that clusters are convex. To address non-convex clusters, the kernel trick can be applied, allowing for a more flexible k-means algorithm. This approach is comparable to spectral clustering in handling complex cluster boundaries (Dhillon, Guan, and Kulis 2004). The k-means algorithm can also be interpreted within the framework of model-based clustering under specific assumptions (Govaert and Nadif 2003), revealing that it is essentially a special case of the more general Gaussian mixture models, where clusters are assumed to be spherical Gaussian distributions with equal variance.
Graph-based methods represent data as a graph, with vertices symbolizing data points and edges weighted to indicate the affinity between these points. Spectral clustering can be seen as a relaxed version of the graph cut algorithm (Shi and Malik 2000). However, traditional spectral clustering faces significant limitations due to its high time and space complexity, greatly hindering its applicability to large-scale problems (Von Luxburg 2007).
The method we propose aims to find non-convex clusters in large datasets, without relying on a parametric model, by using spectral clustering based on an affinity that characterizes the local density of the data. The algorithm described in this paper draws from numerous clustering approaches. The initial intuition is to detect high-density areas. To this end, vector quantization is used to divide the space into a Voronoï tessellation. An original geometric criterion is then employed to detect pairs of Voronoï regions that are either distant from each other or separated by a low-density boundary. Finally, this affinity measure is considered as the weight of an edge in a complete graph connecting the centroids of the tessellation, and a spectral clustering algorithm is used to find a partition of this graph. The two main parameters of the algorithm are the number of Voronoï Cells and the number of clusters.
The paper begins with a section dedicated to presenting the context and related algorithms, followed by a detailed description of the proposed algorithm. Experiments and comparisons with reference algorithms are then conducted on both real and synthetic data.
3 Spectral Bridges
The proposed algorithm uses k-means centroids for vector quantization defining Voronoï region, and a strategy is proposed to link these regions, with an “affinity” gauged in terms of minimal margin between pairs of classes. These affinities are considered as weight of edges defining a completely connected graph whose vertices are the regions. Spectral clustering on the region provide a partition of the input space. The sole mandatory parameters of the algorithm are the number of Voronoï regions and the number of final clusters.
3.1 Bridge affinity
The basic idea involves calculating the difference in inertia achieved by projecting onto a segment connecting two centroids, rather than using the two centroids separately (see Figure 1). If the difference is small, it suggests a low density between the classes. Conversely, if this difference is large, it indicates that the two classes may reside within the same densely populated region.
Let us consider a sample X=(\boldsymbol x_i)_{i \in \{1,\cdots,n\}} of vectors \boldsymbol x_i \in \mathbb R^d and a set of m coding vectors (\boldsymbol \mu_k)_{k \in \{1,\cdots,m\}} defining a partition P=\{\mathcal{V}_1,\cdots,\mathcal{V}_m \} of \mathbb R^d into m Voronoï regions: \mathcal{V}_k = \left\{ \mathbf{x} \in \mathbb{R}^d \mid \|\mathbf{x} - \boldsymbol{\mu}_k\| \leq \|\mathbf{x} - \boldsymbol{\mu}_j\| \text{ for all } j \neq k \right\}.
In the following a ball denotes the subset of X in a Voronoï region. The inertia of two balls \mathcal{V}_k and \mathcal{V}_l is I_{kl} = \sum_{\boldsymbol x_i\in \mathcal{V}_k} \|\boldsymbol x_i - \boldsymbol \mu_k\|^2 + \sum_{\boldsymbol x_i\in \mathcal{V}_l} \|\boldsymbol x_i - \boldsymbol \mu_l\|^2. We define a bridge as a structure defined by a segment connecting two centroids \boldsymbol \mu_k and \boldsymbol \mu_l. The inertia of a bridge between \mathcal{V}_k and \mathcal{V}_l is defined as B_{kl} = \sum_{\boldsymbol x_i\in \mathcal{V}_k \cup \mathcal{V}_l} \|\boldsymbol x_i - \boldsymbol p_{kl}(\boldsymbol x_i)\|^2, where \boldsymbol p_{kl}(\boldsymbol x_i) = \boldsymbol \mu_{k} + t_i(\boldsymbol \mu_{l} - \boldsymbol \mu_{k}), with t_i = \min\left(1, \max\left(0, \frac{\langle \boldsymbol x_i - \boldsymbol \mu_k | \boldsymbol \mu_l - \boldsymbol \mu_k\rangle}{\| \boldsymbol \mu_l - \boldsymbol \mu_k \|^2}\right)\right).
Considering two centroïds, the normalized average of the difference betweenn Bridge and balls inertia (see Appendix) constitutes the basis of our affinity measure between two regions: \begin{aligned} \frac{B_{kl}- I_{kl}}{(n_k+n_l)\|\boldsymbol \mu_k - \boldsymbol \mu_l\|^2} &= \frac{\sum_{\boldsymbol{x_i} \in \mathcal V_k} \langle \boldsymbol{x_i} - \boldsymbol{\mu}_k \vert \boldsymbol{\mu}_l - \boldsymbol{\mu}_k \rangle_+^2 + \sum_{\boldsymbol{x_i} \in \mathcal V_l} \langle \boldsymbol{x_i} - \boldsymbol{\mu}_l \vert \boldsymbol{\mu}_k - \boldsymbol{\mu}_l\rangle_+^2}{(n_k+n_l)\|\boldsymbol \mu_k - \boldsymbol \mu_l\|^4},\\ &= \frac{\sum_{\boldsymbol{x_i} \in \mathcal V_k \cup \mathcal V_l} \alpha_i^2}{n_k+n_l}, \end{aligned} where \alpha_i= \begin{cases} t_i, & \text{ if } t_i\in[0,1/2],\\ 1-t_i, & \text{ if } t_i\in]1/2,1]. \end{cases}
The basic intuition behind this affinity is that t_i represents the relative position of the projection of \boldsymbol x_i on the segment [\boldsymbol \mu_k,\boldsymbol \mu_l]. \alpha_i represents the relative position on the segment, with the centroid of the class to which \boldsymbol x_i belongs as the reference point.
This quantity can also be understood in relation to a local form of PCA. Unlike the standard PCA inertia criterion, this approach is directional and limited to the union of two Voronoï cells.
Let X_{| k} denote the data matrix restricted to the region \mathcal{V}_k. The projection operator onto the \boldsymbol{\mu}_k-centered segment [\boldsymbol{0}, \boldsymbol{\mu}_l - \boldsymbol{\mu}_k] is given by: \boldsymbol{\pi}_{kl}(\cdot) = \boldsymbol{p}_{kl}(\cdot) - \boldsymbol{\mu}_k
It then follows that: \frac{\sum_{\boldsymbol{x_i} \in \mathcal{V}_k \cup \mathcal{V}_l} \alpha_i^2}{n_k + n_l} = \frac{\| \boldsymbol{\pi}_{kl}(X_{| k}) \|_F^2 + \| \boldsymbol{\pi}_{lk}(X_{| l}) \|_F^2}{(n_k + n_l) \| \boldsymbol{\mu}_k - \boldsymbol{\mu}_l \|^2}, where \| \cdot \|_F is the Frobenius norm.
This formulation is particularly useful for numerical implementation.
Moreover, the boundary that separates the two clusters defined by centroids \boldsymbol \mu_k and \boldsymbol \mu_l is a hyperplane \mathcal{P}_{kl}. This hyperplane is orthogonal to the line segment connecting the centroids and intersects this segment at its midpoint.
If we consider all points \boldsymbol x_i \in \mathcal V_k \cup \mathcal V_l which are not projected on centroids but somewhere on the segment, the distance from a point to the hyperplane is d(\boldsymbol x_i, \mathcal{P}_{kl}) = (1/2-\alpha_i) \| \boldsymbol \mu_k-\boldsymbol \mu_l \|.
This distance is similar to the concept of margin in Support Vector Machine (Cortes and Vapnik 1995). When the \alpha_i values are small (close to zero since \alpha_i\in [0,1/2]), the margins to the hyperplane are large, indicating a low density between the classes. Conversely, if the margins are small, it suggests that the two classes may reside within the same densely populated region. Consequently, the sum of the \alpha_i or \alpha_i^2 increases with the density of the region between the classes (See Figure Figure 2).
Note that the criterion is local and indicates the relative difference in densities between the balls and the bridge, rather than evaluating a global score for the densities of the structures.
Eventually, we define the bridge affinity between centroids k and l as the square root of the variance gain: a_{kl} = \begin{cases} 0, & \text{if } k = l, \\ \sqrt{\frac{\sum_{\boldsymbol{x_i} \in \mathcal{V}_k \cup \mathcal{V}_l} \alpha_i^2}{n_k + n_l}}, & \text{otherwise}. \end{cases}
The inclusion of the square root redefines the variance affinity measure. Rather than using the squared Euclidean norm, the affinity is interpreted as a quadratic mean, representing the ratio of the standard deviation to the length of the segment connecting two centroids.
This concept can be generalized by introducing the p-bridge affinity for any p > 0 using the Minkowski mean: a_{p, kl} = \begin{cases} 0, & \text{if } k = l, \\ \left(\frac{\sum_{\boldsymbol{x_i} \in \mathcal{V}_k \cup \mathcal{V}_l} \alpha_i^p}{n_k + n_l}\right)^{1/p}, & \text{otherwise}. \end{cases}
Both definitions are equivalent when p = 2. For p = 1, the affinity aligns directly with the SVM model previously discussed. Note that this yields a bounded metric in [0, 1/2].
To allow points with large margin to dominate and make the algorithm more robust to noise and outliers we consider the following exponential transformation: \tilde{a}_{kl} = g(a_{kl})=\exp(\gamma a_{kl}). \tag{1}
where \gamma is a scaling factor. This factor is set to ensure a large enough separation between the final coefficients. This factor is determined by the equation: \gamma = \frac{log(𝑀)}{q_{90} - q_{10}},
where q_{10} and q_{90} are respectively the 10th and 90th percentiles of the original affinity matrix and M > 1. Thus, since the transformation is order-preserving, the 90th percentile of the newly constructed matrix is M times greater than the 10th percentile. By default, M is arbitrarily set to a large value of 10^4.
This regularization is crucial: with a bounded affinity metric, exponentiation enhances the separation between low and high-density regions, controlled by a scaling parameter, as in traditional spectral clustering. Redefining the metric with a square root (or power 1/p for the generalized affinity) helps mitigate a converse issue. Omitting this step would entail a_{p, kl} \leq 2^{-p}. Machine error could cause numerical instability when solving the Laplacian eigenproblem, especially if values become too small or too large, since the range of affinity values can become wide when the initial ratio between the largest and smallest non-zero unscaled bridge affinities is high. This transformation reduces the maximum values in the affinity matrix while preserving the metric’s interpretability and distance-like properties; importantly, this adjustment is not intended for outlier detection.
3.2 Algorithm
The Spectral Bridges algorithm first identifies local clusters to define Voronoï regions, computes edges with affinity weights between these regions, and ultimately cuts edges between regions with low inter-region density to determine the final clusters (see Algorithm 1 and Figure 3).
In spectral clustering, the time complexity is usually dominated by the eigendecomposition step, which is O(n^3). However, in the case of Spectral Bridges, the k-means algorithm has a time complexity of O(n \times m \times d). For datasets with large n, this can be more significant than the O(m^3) time complexity of the Spectral Bridges eigendecomposition. As for the affinity matrix construction, there are m^2 coefficients to be calculated. Each a_{kl} coefficient requires the computation of n_k + n_l dot products as well as the norm \| \boldsymbol \mu_k-\boldsymbol \mu_l \|, the latter often being negligeable. Assuming that the Voronoï regions are roughly balanced in cardinality, we have n_k \approx \frac{n}{m}. Since m should always be less than n, therefore \frac{n}{m} > 1 and the time complexity of the affinity matrix is O(\frac{n}{m} \times m^2 \times d) = O(n \times m \times d) given the acceptable range of values for m. Nonetheless, this is rarely the bottleneck.
\begin{algorithm} \caption{Spectral Bridges} \begin{algorithmic} \Procedure{SpectralBridges}{$X, k, m$} \Comment{$X$: input dataset, $k$: number of clusters, $m$: number of Voronoï regions} \State \textbf{Step 1: Vector Quantization} \State $\text{centroids}, \text{voronoiRegions} \gets$ \Call{KMeans}{$X, m$} \Comment{Initial centroids and Voronoi regions using k-means++} \State \textbf{Step 2: Affinity Computation} \State $A = \{g(a_{kl})\}_{kl} \gets$ \Call{Affinity}{$X, \text{centroids}, \text{voronoiRegions}$} \Comment{Compute affinity matrix $A$} \State \textbf{Step 3: Spectral Clustering} \Comment{Assign each region to a cluster} \State $\text{labels} \gets$ \Call{SpectralClustering}{$A, k$} \State \textbf{Step 4: Propagate} \Comment{Assign each data point to the cluster of its region} \State $\text{clusters} \gets$ \Call{Propagate}{$X, \text{labels}, \text{voronoiRegions}$} \State \Return $\text{clusters}$ \Comment{Return cluster labels for data points in $X$} \EndProcedure \end{algorithmic} \end{algorithm}
3.3 Hyperparameter settings
The proposed algorithm requires three input parameters: the number of clusters K, the number of Voronoï regions m, and a scaling parameter for the spectral clustering phase.
Model selection in non-parametric settings is challenging due to the absence of predefined model parameters. It relies heavily on data-driven approaches. Metrics like the Gap Statistic (Tibshirani, Walther, and Hastie 2001) and the Laplacian eigengap (Von Luxburg 2007) are potential tools for hyperparameter selection.
We propose a method for choosing the scaling parameter (see Equation Equation 1) that yields stable results. Selecting both m, the number of Voronoï regions, and K, the number of clusters, is difficult. We address this by adopting a heuristic: first, choose K, then determine m using a modified Laplacian eigengap.
If K represents the true number of clusters, the affinity matrix resembles a graph adjacency matrix with K connected components. This configuration is characterized by an eigengap at the Kth eigenvalue. In Self-Tuning Spectral Clustering (Zelnik-Manor and Perona 2004), the eigengap \lambda_{K+1} - \lambda_K is used to evaluate clustering quality for K clusters. Following a similar strategy, and assuming K is known, the Laplacian eigengap at the Kth eigenvalue can select m, with the scaling parameter fixed.
Determining the optimal value of m using the eigengap is not straightforward. As the affinity matrix dimension increases, the number of eigenvalues grows, reducing gaps between them. This makes direct comparisons unreliable. To address this, we use the ratio \rho = (\lambda_{K+1} - \lambda_K) / \lambda_{K+1}. This metric is bounded between 0 and 1 and measures the relative difference between consecutive eigenvalues. It facilitates meaningful comparisons across different values of m. A value of R close to 1 suggests high clustering quality, whereas lower values indicate weaker performance.
Using this metric, we determine a near-optimal value for m by maximizing the average R across possible values of m. Additionally, the metric enhances robustness by running the algorithm with different random seeds and selecting the clustering result with the highest normalized eigengap.
4 Numerical experiments
In this section, the results obtained from testing the Spectral Bridges algorithm on various datasets, both small and large scale, including real-world and well-known synthetic datasets, are presented. These experiments assess the accuracy, time and space complexity, ease of use, robustness, and adaptability of our algorithm. We compare Spectral Bridges (SB) against several state-of-the-art methods, including k-means++ (KM) (MacQueen et al. 1967; Arthur and Vassilvitskii 2006), Expectation-Maximization (EM) (Dempster, Laird, and Rubin 1977), Ward Clustering (WC) (Ward Jr 1963), DBSCAN (DB) (Ester et al. 1996) and GIT (Gao et al. 2021). This comparison establishes baselines across centroid-based clustering algorithms, hierarchical methods, and density-based methods.
The algorithms are evaluated on both raw and Principal Component Analysis processed (PCA-processed) data with varying dimensionality. For synthetic datasets, Gaussian and/or uniform noise is introduced to assess the robustness of the algorithm.
4.1 Datasets
4.1.1 Real-world data
- MNIST: A large dataset containing 60,000 handwritten digit images in ten balanced classes, commonly used for image processing benchmarks. Each image consists of 28 \times 28 = 784 pixels.
- UCI ML Breast Cancer Wisconsin: A dataset featuring computed attributes from digitized images of fine needle aspirates (FNA) of breast masses, used to predict whether a tumor is malignant or benign.
4.1.2 Synthetic data

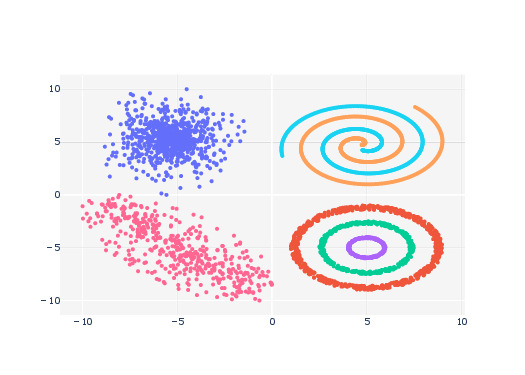

- Impossible: A synthetic dataset designed to challenge clustering algorithms with complex patterns.

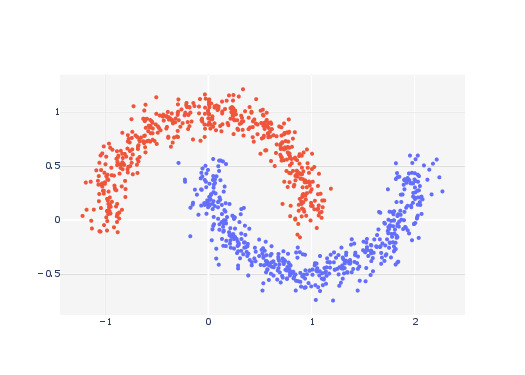

- Moons: A two-dimensional dataset with two interleaving half-circles.

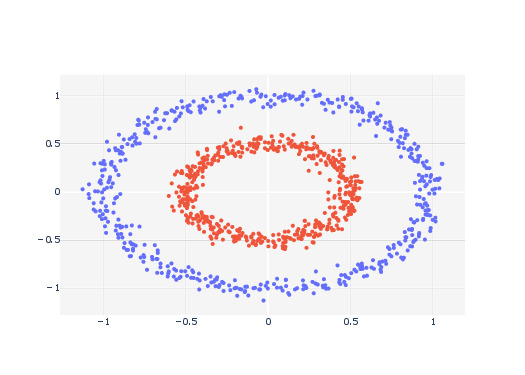

- Circles: A synthetic dataset of points arranged in two non-linearly separable circles.

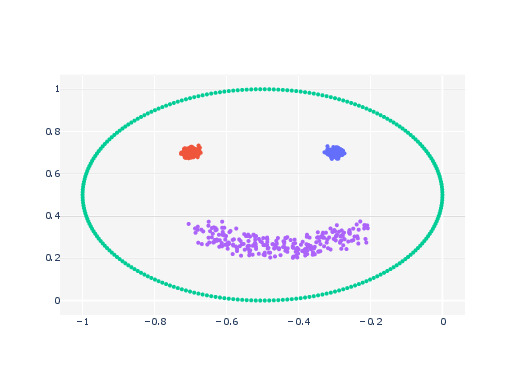

- Smile: A synthetic dataset with points arranged in the shape of a smiling face, used to test the separation of non-linearly separable data.
4.1.3 Datasets Summary & Class Balance
| Dataset | #Dims | #Samples | #Classes | Class Proportions |
|---|---|---|---|---|
| MNIST | 784 | 60000 | 10 | 9.9\%, 11.2\%, 9.9\%, 10.3\%, 9.7\%, 9\%, 9.9\%, 10.4\%, 9.7\%, 9.9\% |
| UCI Breast Cancer | 30 | 569 | 2 | 37.3\%, 62.7\% |
| Impossible | 2 | 3594 | 7 | 24.8\%, 18.8\%, 11.3\%, 7.5\%, 12.5\%, 12.5\%, 12.5\% |
| Moons | 2 | 1000 | 2 | 50\%, 50\% |
| Circles | 2 | 1000 | 2 | 50\%, 50\% |
| Smile | 2 | 1000 | 4 | 25\%, 25\%, 25\%, 25\% |
4.2 Metrics
To evaluate the performance of the clustering algorithm, the Adjusted Rand Index (ARI) (Halkidi, Batistakis, and Vazirgiannis 2002) and Normalized Mutual Information (NMI) (Cover and Thomas 1991) are used. ARI measures the similarity between two clustering results, ranging from -0.5 to 1, with 1 indicating perfect agreement. NMI ranges from 0 to 1, with higher values indicating better clustering quality. In some tests, the variability of scores across multiple runs is also reported due to the random initialization in k-means, though k-means++ generally provides stable and reproducible results.
4.3 Platform
All experiments were conducted on an Archlinux machine with Linux 6.9.3 Kernel, 8GB of RAM, and an AMD Ryzen 3 7320U processor.
4.4 Sensitivity to hyperparameters
The hyperparameters of the Spectral Bridges algorithm were based on the size of each dataset, n, and the number of clusters, K.
To better grasp the sensitivity with respect to m, the number of Voronoï cells, Spectral Bridges was run on the PCA h = 32 embedded MNIST dataset with varying values of m \in \{10, 120, 230, 340, 450, 560, 670, 780, 890, 1000\}. The case m = 10 is equivalent to the k-means++ algorithm. ARI and NMI scores are recorded over 20 consecutive iterations and subsequently plotted. As shown by Figure 4, the accuracy seems to be consistently increasing with values of m, with the largest observed gap occurring between values of m = 10 and m = 120, and flattening thereafter, indicating a tremendous improvement over the classical k-means++ framework even for empirically suboptimal hyperparameter values.
For other algorithms, such as DBSCAN, labels were used to determine the best hyperparameter values to compare our method against the “best case scenario”, thus putting the Spectral Bridges algorithm at a voluntary disadvantage.
4.5 Time complexity
To assess the algorithm’s time complexity, the average execution times over 50 runs were computed for varying numbers of Voronoï regions m as well as dataset sizes. With a constant number of clusters K = 5 and an embedding dimension of d = 10, the results (see Figure 5) highlight Spectral Bridges algorithm’s efficacy. As discussed previously, we observe a linear relationship between m and the execution time because the matrix construction is highly optimized and the time taken is almost negligeable compared to that of the initial k-means++ centroids initalization.
4.6 Accuracy
The algorithm’s accuracy was first evaluated on the MNIST dataset. Metrics were collected to compare our method with k-means++, EM, GIT, and Ward clustering. Metrics were estimated by computing the empirical average over 10 consecutive runs for each method. Due to limited computational resources, we randomly selected a sample of 20,000 data points (one-third of the total) for each run, on which all algorithms were trained and tested. To ensure reproducibility, a fixed random seed was set at the beginning of all scripts. Note, however, that this does not imply centroids were initialized identically for centroid based methods, as these may vary according to the implementation of each tested algorithm.
Let h denote the embedding dimension of the dataset. Spectral Bridges was tested both on the raw MNIST dataset without preprocessing (h = 784) and after reducing its dimension using PCA to h \in \{8, 16, 32, 64\} (see Figure 6).
| Metric | Algorithm | h = 8 | h = 16 | h = 32 | h = 64 | h = 784 (full) |
|---|---|---|---|---|---|---|
| ARI | KM | 0.3661 | 0.3701 | 0.3794 | 0.3740 | 0.3665 |
| EM | 0.4672 | 0.5081 | 0.4826 | 0.4422 | 0.1850 | |
| WC | 0.4123 | 0.4729 | 0.4771 | 0.5043 | 0.5164 | |
| GIT | 0.4162 | 0.4792 | 0.3166 | 0.2347 | 0.3094 | |
| SB | \mathbf{0.5789} | \mathbf{0.6875} | \mathbf{0.7110} | \mathbf{0.6983} | \mathbf{0.6619} | |
| NMI | KM | 0.4778 | 0.4899 | 0.5037 | 0.4969 | 0.4915 |
| EM | 0.6007 | 0.6462 | 0.6355 | 0.5952 | 0.3252 | |
| WC | 0.5471 | 0.6340 | 0.6532 | 0.6634 | 0.6648 | |
| GIT | 0.5110 | 0.5720 | 0.4227 | 0.3314 | 0.4297 | |
| SB | \mathbf{0.6592} | \mathbf{0.7616} | \mathbf{0.7895} | \mathbf{0.7846} | \mathbf{0.7628} |
Additionally, the proposed algorithm was evaluated on the MNIST dataset after reducing its dimensionality to h \in \{2, 4, 8, 16\} using UMAP (McInnes et al. 2018), a state-of-the-art nonlinear dimensionality reduction technique (see Figure 7). To enhance the clustering performance of Spectral Bridges, the normalized eigengap method was applied. This approach trains the algorithm with multiple initializations and determines the optimal number of Voronoï cells by selecting the configuration with the largest normalized eigengap (refer to Section 3.3).
| Metric | Algorithm | h = 2 | h = 4 | h = 8 | h = 16 |
|---|---|---|---|---|---|
| ARI | KM | 0.8154 | 0.7971 | 0.7985 | 0.8160 |
| EM | 0.8670 | 0.8828 | 0.8494 | 0.8359 | |
| WC | 0.9008 | 0.8015 | 0.8004 | 0.8105 | |
| GIT | 0.9141 | 0.9298 | 0.9297 | 0.9289 | |
| SB | \mathbf{0.9304} | \mathbf{0.9318} | \mathbf{0.9315} | \mathbf{0.9332} | |
| NMI | KM | 0.8664 | 0.8586 | 0.8574 | 0.8641 |
| EM | 0.8908 | 0.9025 | 0.8916 | 0.8826 | |
| WC | 0.9047 | 0.8733 | 0.8721 | 0.8785 | |
| GIT | 0.9081 | 0.9172 | \mathbf{0.9183} | 0.9184 | |
| SB | \mathbf{0.9182} | \mathbf{0.9198} | 0.9125 | \mathbf{0.9214} |
Note the Spectral Bridges algorithm shines particularly even with quite simple dimension reduction algorithms.

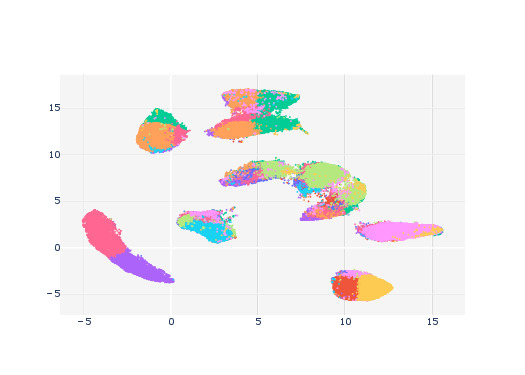

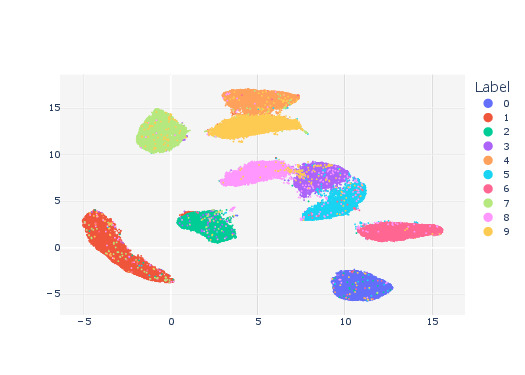

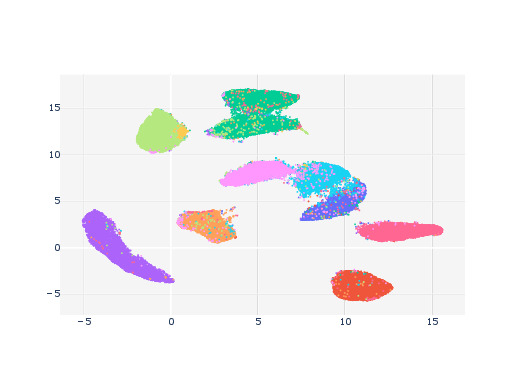

For visualization purposes, the predicted clusters by Spectral Bridges and k-means++ were projected using UMAP to compare them against the ground truth labels and to better understand the cluster shapes (see Figure 8). Note that this projection was not used in the experiments as an embedding, and thus does not play any role in the clustering process itself. As a matter of fact, the embedding used was obtained with Principal Componant Analysis (PCA), h = 32 and 500 Voronoï regions. Note that the label colors match the legend only in the case of the ground truth data. Indeed, the ordering of the labels have no significance on clustering quality. Importantly, Spectral Bridges demonstrates remarkable accuracy, with the exception of the classes representing digits “4” and “9”, which appear to have been merged.
The Spectral Bridges algorithm was also put to the test against the same competitors using scikit-learn’s UCI Breast Cancer data. Once again, the normalized eigengap method was used, and the presented algorithm performed well, although the advantage was not as obvious in this case (see Figure 9). However, in none of our tests has it ranked worse than k-means++. The results are displayed as a boxplot generated from 200 iterations of each algorithm using a different seed, in order to better grasp the variability lying in the seed dependent nature of the k-means++, Expectation Maximization and Spectral Bridges algorithms.
| Metric | Algorithm | UCI Breast Cancer |
|---|---|---|
| ARI | KM | 0.6675 |
| EM | \mathbf{0.7718} | |
| WC | 0.5750 | |
| GIT | 0.2138 | |
| SB | 0.6985 | |
| NMI | KM | 0.5502 |
| EM | \mathbf{0.6586} | |
| WC | 0.4569 | |
| GIT | 0.2576 | |
| SB | 0.5787 |
Since the Spectral Bridges algorithm is expected to excel at discerning complex and intricate cluster structures, an array of four toy datasets was collected, as illustrated in Figure 10.
Multiple algorithms, including the proposed one, were benchmarked in the exact same manner as for the UCI Breast Cancer data. The results show that the proposed method outperforms all tested algorithms (DBSCAN, k-means++, Expectation Maximization, GIT, and Ward Clustering) while requiring few hyperparameters. As previously discussed, DBSCAN’s parameters were optimized using the ground truth labels to represent a best-case scenario; however, in practical applications, suboptimal performance is more likely. Despite this optimization, the Spectral-Bridge algorithm still demonstrates superior ability to capture and represent the underlying cluster structures.
| Metric | Algorithm | Impossible | Moons | Circles | Smile |
|---|---|---|---|---|---|
| ARI | DB | 0.8180 | 0.9294 | 0.9920 | \mathbf{1.0000} |
| KM | 0.5984 | 0.2390 | -0.0009 | 0.5522 | |
| EM | 0.6112 | 0.4897 | -0.0009 | 0.7526 | |
| WC | 0.6368 | 0.4298 | 0.0068 | 0.5548 | |
| GIT | 0.8895 | \mathbf{0.9920} | \mathbf{1.0000} | 0.5693 | |
| SB | \mathbf{0.9996} | 0.9912 | \mathbf{1.0000} | \mathbf{1.0000} | |
| NMI | DB | 0.8823 | 0.8825 | 0.9803 | \mathbf{1.0000} |
| KM | 0.6936 | 0.1807 | 0.0000 | 0.6126 | |
| EM | 0.7021 | 0.3905 | 0.0001 | 0.8001 | |
| WC | 0.7505 | 0.4690 | 0.0056 | 0.6120 | |
| GIT | 0.9103 | \mathbf{0.9812} | \mathbf{1.0000} | 0.6210 | |
| SB | \mathbf{0.9995} | 0.9787 | \mathbf{1.0000} | \mathbf{1.0000} |
4.7 Noise robustness

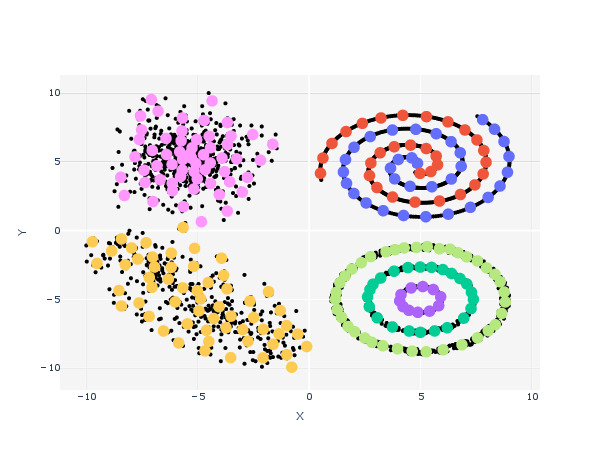

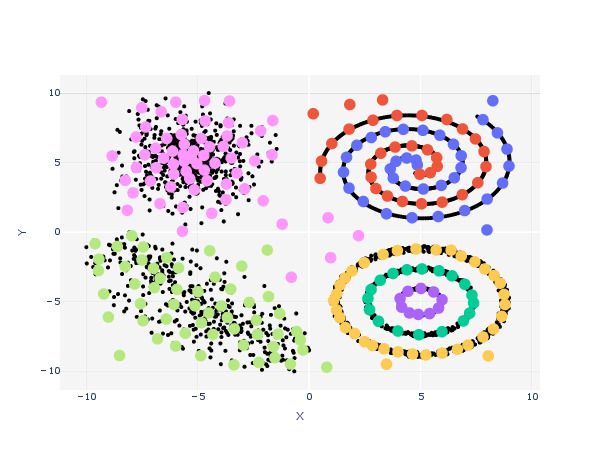

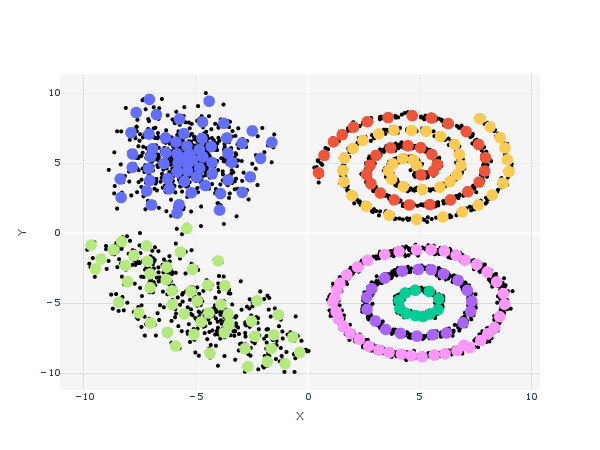

To evaluate the noise robustness of the algorithm, two experimental setups were devised: one involved introducing Gaussian-distributed perturbations to the data, and the other involved concatenating uniformly distributed points within a predefined rectangular region (determined by the span of the dataset) to the existing dataset. As illustrated in Figure 12, the tests demonstrate that in both scenarios, the algorithm exhibits a high degree of insensitivity to noise.
5 Conclusive remarks
Spectral Bridges is an original clustering algorithm which presents a novel approach by integrating the strengths of traditional k-means and spectral clustering frameworks. This algorithm utilizes a simple affinity measure for spectral clustering, which is derived from the minimal margin between pairs of Voronoï regions.
The algorithm demonstrates scalability, handling large datasets efficiently through a balanced computational complexity between the k-means clustering and eigendecomposition steps. As a non-parametric method, Spectral Bridges does not rely on strong assumptions about data distribution, enhancing its versatility across various data types. It performs exceptionally well with both synthetic and real-world data and consistently outperforms conventional clustering algorithms such as k-means, DBSCAN, and mixture models.
The design of Spectral Bridges ensures robustness to noise, a significant advantage in real-world applications. Additionally, the algorithm requires minimal hyperparameters, primarily the number of Voronoï regions, making it straightforward to tune and deploy.
Furthermore, Spectral Bridges can be kernelized, allowing it to handle data in similarity space directly, which enhances its flexibility and applicability. Overall, Spectral Bridges is a powerful, robust, and scalable clustering algorithm that offers significant improvements over traditional methods, making it an excellent tool for advanced clustering tasks across numerous domains.
References
Arthur, David, and Sergei Vassilvitskii. 2006. “K-Means++: The Advantages of Careful Seeding.” Technical Report 2006-13. Stanford InfoLab; Stanford. http://ilpubs.stanford.edu:8090/778/.
Cai, Deng, and Xinlei Chen. 2014. “Large Scale Spectral Clustering via Landmark-Based Sparse Representation.” IEEE Transactions on Cybernetics 45 (8): 1669–80.
Chen, Wen-Yen, Yangqiu Song, Hongjie Bai, Chih-Jen Lin, and Edward Y Chang. 2010. “Parallel Spectral Clustering in Distributed Systems.” IEEE Transactions on Pattern Analysis and Machine Intelligence 33 (3): 568–86.
Cortes, Corinna, and Vladimir Vapnik. 1995. “Support-Vector Networks.” Machine Learning 20 (3): 273–97.
Cover, Thomas M, and Joy A Thomas. 1991. “Information Theory and the Stock Market.” Elements of Information Theory. Wiley Inc., New York, 543–56.
Dempster, Arthur P, Nan M Laird, and Donald B Rubin. 1977. “Maximum Likelihood from Incomplete Data via the EM Algorithm.” Journal of the Royal Statistical Society: Series B (Methodological) 39 (1): 1–22.
Dhillon, Inderjit S, Yuqiang Guan, and Brian Kulis. 2004. “Kernel k-Means, Spectral Clustering and Normalized Cuts.” In Proceedings of the Tenth ACM SIGKDD International Conference on Knowledge Discovery and Data Mining, 551–56. ACM.
Eisen, Michael B., Paul T. Spellman, Patrick O. Brown, and David Botstein. 1998. “Cluster Analysis and Display of Genome-Wide Expression Patterns.” Proceedings of the National Academy of Sciences 95 (25): 14863–68.
Ester, Martin, Hans-Peter Kriegel, Jörg Sander, Xiaowei Xu, et al. 1996. “A Density-Based Algorithm for Discovering Clusters in Large Spatial Databases with Noise.” In Kdd, 96:226–31.
Gao, Zhangyang, Haitao Lin, Cheng Tan, Lirong Wu, Stan Li, et al. 2021. “Git: Clustering Based on Graph of Intensity Topology.” arXiv Preprint arXiv:2110.01274.
Govaert, Gérard, and Mohamed Nadif. 2003. “Clustering with Block Mixture Models.” Pattern Recognition 36 (2): 463–73.
Halkidi, Maria, Yannis Batistakis, and Michalis Vazirgiannis. 2002. “Cluster Validity Methods: Part i.” ACM SIGMOD Record 31 (2): 40–45.
Huang, Dong, Chang-Dong Wang, Jian-Sheng Wu, Jian-Huang Lai, and Chee-Keong Kwoh. 2019. “Ultra-Scalable Spectral Clustering and Ensemble Clustering.” IEEE Transactions on Knowledge and Data Engineering 32 (6): 1212–26.
Jacobs, Robert A, Michael I Jordan, Steven J Nowlan, and Geoffrey E Hinton. 1991. “Adaptive Mixtures of Local Experts.” Neural Computation 3 (1): 79–87.
Latouche, Pierre, Etienne Birmelé, and Christophe Ambroise. 2011. “Overlapping stochastic block models with application to the French political blogosphere.” The Annals of Applied Statistics 5 (1): 309–36. https://doi.org/10.1214/10-AOAS382.
MacQueen, James et al. 1967. “Some Methods for Classification and Analysis of Multivariate Observations.” In Proceedings of the Fifth Berkeley Symposium on Mathematical Statistics and Probability, 1:281–97. Oakland, CA, USA.
McInnes, Leland, John Healy, Nathaniel Saul, and Lukas Großberger. 2018. “UMAP: Uniform Manifold Approximation and Projection.” Journal of Open Source Software 3 (29): 861. https://doi.org/10.21105/joss.00861.
McLachlan, Geoffrey J., and David Peel. 2000. Finite Mixture Models. New York: Wiley-Interscience.
Ng, Andrew, Michael Jordan, and Yair Weiss. 2001. “On Spectral Clustering: Analysis and an Algorithm.” Advances in Neural Information Processing Systems 14.
Shi, Jianbo, and Jitendra Malik. 2000. “Normalized Cuts and Image Segmentation.” IEEE Transactions on Pattern Analysis and Machine Intelligence 22 (8): 888–905.
Tibshirani, Robert, Guenther Walther, and Trevor Hastie. 2001. “Estimating the Number of Clusters in a Data Set via the Gap Statistic.” Journal of the Royal Statistical Society: Series B (Statistical Methodology) 63 (2): 411–23.
Verhaak, Roel G. W., Katherine A. Hoadley, Elizabeth Purdom, Victoria Wang, Yuexin Qi, Matthew D. Wilkerson, Charlie R. Miller, et al. 2010. “Integrated Genomic Analysis Identifies Clinically Relevant Subtypes of Glioblastoma Characterized by Abnormalities in PDGFRA, IDH1, EGFR, and NF1.” Cancer Cell 17 (1): 98–110.
Von Luxburg, Ulrike. 2007. “A Tutorial on Spectral Clustering.” Statistics and Computing 17: 395–416.
Ward Jr, Joe H. 1963. “Hierarchical Grouping to Optimize an Objective Function.” Journal of the American Statistical Association 58 (301): 236–44.
Zelnik-Manor, Lihi, and Pietro Perona. 2004. “Self-Tuning Spectral Clustering.” Advances in Neural Information Processing Systems 17.
6 Appendix
6.1 Derivation of the bridge affinity
We denote a bridge as a segment connecting two centroids \boldsymbol \mu_k and \boldsymbol \mu_l. The inertia of a bridge between \mathcal{V}_k and \mathcal{V}_l is defined as B_{kl} = \sum_{\boldsymbol x_i\in \mathcal{V}_k \cup \mathcal{V}_l} \|\boldsymbol x_i - \boldsymbol p_{kl}(\boldsymbol x_i)\|^2, where \boldsymbol p_{kl}(\boldsymbol x_i) = \boldsymbol \mu_{k} + t_i(\boldsymbol \mu_{l} - \boldsymbol \mu_{k}), with t_i = \min\left(1, \max\left(0, \frac{\langle \boldsymbol x_i - \boldsymbol \mu_k | \boldsymbol \mu_l - \boldsymbol \mu_k\rangle}{\| \boldsymbol \mu_l - \boldsymbol \mu_k \|^2}\right)\right).
B_{kl}, the bridge inertia between centroids k and l, can be expressed as the sum of three terms, which represents the projection onto each centroïds and onto the segment:
\begin{aligned} B_{kl} &=& \sum_{i \mid t_i = 0} \|\boldsymbol x_i - \boldsymbol \mu_k\|^2 + \sum_{i \mid t_i = 1} \|\boldsymbol x_i - \boldsymbol \mu_l\|^2 + \sum_{i \mid t_i\in ]0,1[} \|\boldsymbol x_i - \boldsymbol p_{kl}(\boldsymbol x_i)\|^2. \end{aligned}
The last term may be decomposed in two parts corresponding to the points of the two Voronoï regions which are projected on the segment:
\begin{aligned} \sum_{i \mid t_i\in ]0,1[} \|\boldsymbol x_i - \boldsymbol p_{kl}(\boldsymbol x_i)\|^2 &=& \sum_{i \mid t_i\in ]0,\frac{1}{2}[} \|\boldsymbol x_i - \boldsymbol p_{kl}(\boldsymbol x_i)\|^2 + \sum_{i \mid t_i\in [\frac{1}{2},1[} \|\boldsymbol x_i - \boldsymbol p_{kl}(\boldsymbol x_i)\|^2\\ \end{aligned} and each part further decomposed using Pythagore \begin{aligned} \sum_{i \mid t_i\in ]0,\frac{1}{2}[} \|\boldsymbol x_i - \boldsymbol p_{kl}(\boldsymbol x_i)\|^2 &=& \sum_{i \mid t_i\in ]0,\frac{1}{2}[} \|\boldsymbol x_i - \boldsymbol \mu_k\|^2 - \sum_{i \mid t_i\in ]0,\frac{1}{2}[} \|\boldsymbol \mu_k - \boldsymbol p_{kl}(\boldsymbol x_i)\|^2\\ &=& \sum_{i \mid t_i\in ]0,\frac{1}{2}[} \|\boldsymbol x_i - \boldsymbol \mu_k\|^2 - \sum_{i \mid t_i\in ]0,\frac{1}{2}[} \|t_i (\boldsymbol \mu_k - \boldsymbol \mu_{l})\|^2, \end{aligned}
\begin{aligned} \sum_{i \mid t_i\in ]\frac{1}{2},1[} \|\boldsymbol x_i - \boldsymbol p_{kl}(\boldsymbol x_i)\|^2 &=& \sum_{i \mid t_i\in ]0,\frac{1}{2}[} \|\boldsymbol x_i - \boldsymbol \mu_l\|^2 - \sum_{i \mid t_i\in ]0,\frac{1}{2}[} \|\boldsymbol \mu_l - \boldsymbol p_{kl}(\boldsymbol x_i)\|^2\\ &=& \sum_{i \mid t_i\in ]\frac{1}{2},1[} \|\boldsymbol x_i - \boldsymbol \mu_k\|^2 - \sum_{i \mid t_i\in ]0,\frac{1}{2}[} \|(1-t_i) (\boldsymbol \mu_k - \boldsymbol \mu_{l})\|^2 \end{aligned}
Thus \begin{aligned} B_{kl}- I_{kl} &= \sum_{i \mid t_i\in ]0,\frac{1}{2}[} t_i^2 \|\boldsymbol \mu_k - \boldsymbol \mu_l\|^2 + \sum_{i \mid t_i\in ]\frac{1}{2},1[} (1-t_i)^2 \|\boldsymbol \mu_k - \boldsymbol \mu_l\|^2,\\ \frac{B_{kl}- I_{kl}}{\|\boldsymbol \mu_k - \boldsymbol \mu_l\|^2} &= \sum_{i \mid t_i\in ]0,\frac{1}{2}[} t_i^2 + \sum_{i \mid t_i\in ]\frac{1}{2},1[} (1-t_i)^2, \\ \frac{B_{kl}- I_{kl}}{(n_k+n_l)\|\boldsymbol \mu_k - \boldsymbol \mu_l\|^2} &= \frac{\sum_{\boldsymbol{x_i} \in \mathcal V_k} \langle \boldsymbol{x_i} - \boldsymbol{\mu}_k \vert \boldsymbol{\mu}_l - \boldsymbol{\mu}_k \rangle_+^2 + \sum_{\boldsymbol{x_i} \in \mathcal V_l} \langle \boldsymbol{x_i} - \boldsymbol{\mu}_l \vert \boldsymbol{\mu}_k - \boldsymbol{\mu}_l\rangle_+^2}{(n_k+n_l)\|\boldsymbol \mu_k - \boldsymbol \mu_l\|^4}. \end{aligned}
6.2 Code
6.2.1 Implementation
Numerical experiments have been conducted in Python. The python scripts to reproduce the simulations and figures are available at https://github.com/flheight/Spectral-Bridges. The Spectral Bridge algorithm is implemented both in
6.2.2 Affinity matrix computation
Taking a closer look at the second step of Algorithm 1, that is the affinity matrix calculation with a O(n \times m \times d) time complexity, most operations can be parallelized leaving a single loop, bundling together m^2 dot products into only m matrix multiplications, thus allowing for an efficient construction in both high and low level programming languages. Though the complexity of the algorithm remains unchanged, libraries such as Basic Linear Algebra Subprograms can render the calculations orders of magnitude faster. Moreover, the symmetrical nature of the bridge affinity can be used to effectively halve the computation time.
The calculation of the affinity matrix is highlighted by the Python code Listing 1. Though it could be even more optimized, the following code snippet is approximately 200 times faster than a naive implementation on a small dataset comprised of n = 3594, d = 2 points, and a value of m = 250.
Session information
Hide/Show the code
sessionInfo()R version 4.4.1 (2024-06-14)
Platform: x86_64-pc-linux-gnu
Running under: Ubuntu 24.04.1 LTS
Matrix products: default
BLAS: /usr/lib/x86_64-linux-gnu/blas/libblas.so.3.12.0
LAPACK: /usr/lib/x86_64-linux-gnu/lapack/liblapack.so.3.12.0
locale:
[1] LC_CTYPE=C.UTF-8 LC_NUMERIC=C LC_TIME=C.UTF-8
[4] LC_COLLATE=C.UTF-8 LC_MONETARY=C.UTF-8 LC_MESSAGES=C.UTF-8
[7] LC_PAPER=C.UTF-8 LC_NAME=C LC_ADDRESS=C
[10] LC_TELEPHONE=C LC_MEASUREMENT=C.UTF-8 LC_IDENTIFICATION=C
time zone: Etc/UTC
tzcode source: system (glibc)
attached base packages:
[1] stats graphics grDevices datasets utils methods base
loaded via a namespace (and not attached):
[1] htmlwidgets_1.6.4 compiler_4.4.1 fastmap_1.1.1 cli_3.6.2
[5] htmltools_0.5.7 tools_4.4.1 yaml_2.3.8 rmarkdown_2.26
[9] knitr_1.45 jsonlite_1.8.8 xfun_0.42 digest_0.6.34
[13] rlang_1.1.3 renv_1.0.7 evaluate_0.23 Reuse
Citation
BibTeX citation:
@article{laplante2024,
author = {Laplante, Félix and Ambroise, Christophe},
title = {Spectral {Bridges}},
journal = {Computo},
date = {2024-12-13},
url = {https://github.com/computorg/published-202412-ambroise-spectral},
doi = {10.57750/1gr8-bk61},
issn = {2824-7795},
langid = {en},
abstract = {In this paper, Spectral Bridges, a novel clustering
algorithm, is introduced. This algorithm builds upon the traditional
k-means and spectral clustering frameworks by subdividing data into
small Voronoï regions, which are subsequently merged according to a
connectivity measure. Drawing inspiration from Support Vector
Machine’s margin concept, a non-parametric clustering approach is
proposed, building an affinity margin between each pair of Voronoï
regions. This approach delineates intricate, non-convex cluster
structures and is robust to hyperparameter choice. The numerical
experiments underscore Spectral Bridges as a fast, robust, and
versatile tool for clustering tasks spanning diverse domains. Its
efficacy extends to large-scale scenarios encompassing both
real-world and synthetic datasets. The Spectral Bridge algorithm is
implemented both in Python (\textless
https://pypi.org/project/spectral-bridges\textgreater) and R
\textless
https://github.com/cambroise/spectral-bridges-Rpackage\textgreater).}
}
For attribution, please cite this work as:
Laplante, Félix, and Christophe Ambroise. 2024. “Spectral
Bridges.” Computo, December. https://doi.org/10.57750/1gr8-bk61.
